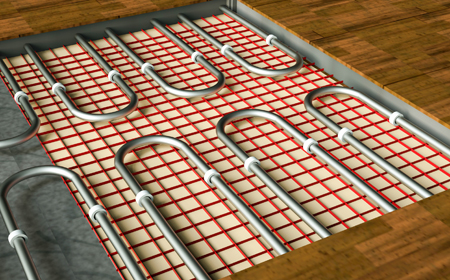

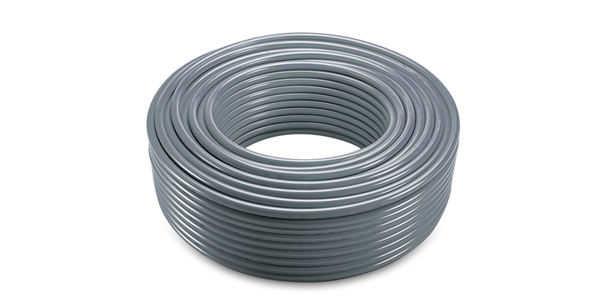

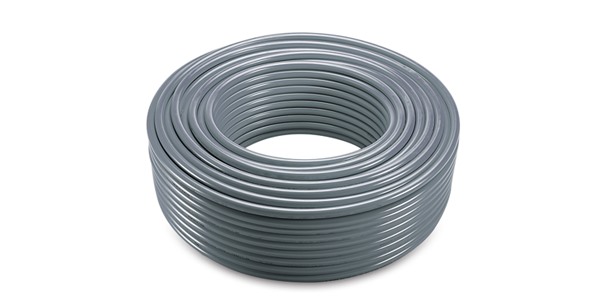

PERT五层阻氧型地暖管专用管由于采用中间阻氧层的结构，因而具有更好的耐热、耐湿和耐磨的特性，提供更好的可靠性和持久性的保证，适用于低温辐射地暖系统和散热器连接系统，是施工环境恶劣的建筑工地的理想之选。

卓越的品质

EXCELLENT QUALITY

因为独特的制造工艺使得五层结构具有更好的耐变形和抗外部应力的能力。
特别的抗老化剂和稳定剂可以保持管道的永久柔韧性并确保较高的热稳定性。
由于管材的外层保护特性，使得安装更具灵活性和安友好，水暖工人的安装更加快速和方便。

创新的制造工艺

创新的5层塑料管制造工艺，应用独特的挤压工艺，可以一步完成5层结构的复合，将阻氧层(EVOH)永久可靠地黏合在PE-X内层和PE外层之间。

The innovative five-layer plastic pipe manufacturing process and the unique extrusion process can complete the five-layer structure compounding in one step. The oxygen barrier layer (EVOH) can be permanently and reliably bonded between the PE-X inner layer and the PE outer layer.

PE-RT管特点

耐高温 70℃ 抗低温脆裂性强 良好的柔韧性，导热性 热稳定性和长期耐压性强 耐化学腐蚀和耐磨性强 热熔连接 安全环保 High temperature resistance 70℃ Anti low temperature embrittlement Good flexibility and thermal conductivity Thermal stability and long term pressure resistance Resistance to chemical corrosion and wear resistance Hot-melt connection safety and environmental protection

质量保证
QUALITY ASSURANCE COMMITMENT

Wibosn PE-RT管路系统生产选择国际公认的原料，并匹配先进设备和工艺，专业的螺杆和挤出工艺能保证原料很好的一次成型，通过激光测径仪和专用的水冷系统确保管路在高速生产中稳定和精准，建立质量体系及条码追溯系统，能够查询操作记录和责任主体，对每盘管材经过下线检查和压力测试，确保出厂100%合格。

Wibosn PERT pipeline system produces internationally recognized raw materials and matches advanced equipment and technology. Professional screw and extrusion technology can guarantee a good raw material molding. Through laser diameter measuring instrument and special water cooling system, the pipeline is stable and accurate in high speed production, and the quality system and bar code traceability system can be built. Inquiry operation record and responsibility body, after each line of pipe inspection and pressure test, to ensure that the factory 100% qualified. The PERT pipeline system developed by the qualified. The PERT pipeline system developed by the 5-2002.GIACOMINI PE-RT pipeline system produces internationally recognized raw materials and matches advanced equipment and technology. Professional screw and extrusion technology can guarantee a good raw material molding. Through laser diameter measuring instrument and special water cooling system, the pipeline is stable and accurate in high speed production, and the quality system and bar code traceability system can be built. Inquiry operation record and responsibility body, after each line of pipe inspection and pressure test, to ensure that the factory 100% qualified. The PE-RT pipeline system developed by the company is in line with the industry standard DIN 16833.

引用标准

REFERENCE STANDARD

Wibosn耐高温聚乙烯管目前执行的标准是DIN 16833。
WibosnPE-RT管路系统在适用范围内的温度和工作压力情况下可用50年。

技术参数

TECHNICAL PARAMETER

适用范围：地板采暖 颜色：灰色  最高工作温度：90℃ 软化温度：123℃ 密度：0.933g/cm 拉伸度：170kg/cm² 横向膨胀系数：1.9*10-4k-1 管材导热系数：0.4W/km

Scope of application: floor heating Color: Red Maximum working temperature: 90 ℃ Softening temperature: 123 ℃ Density: 0.933g/cm Tensile degree: 170kg/cm Lateral expansion coefficient: 1.9*10-4k-1 Thermal conductivity of pipe material: 0.4W/km
