PE-RT五层阻氧型管

威伯森五层阻氧管由于采用中间阻氧层的结构,因而具有更好的耐热、耐湿和耐磨的特性,提供更好的可靠性和持久性的保证,适用于低温辐射地暖系统和散热器连接系统,是施工环境恶劣的建筑工地的理想之选

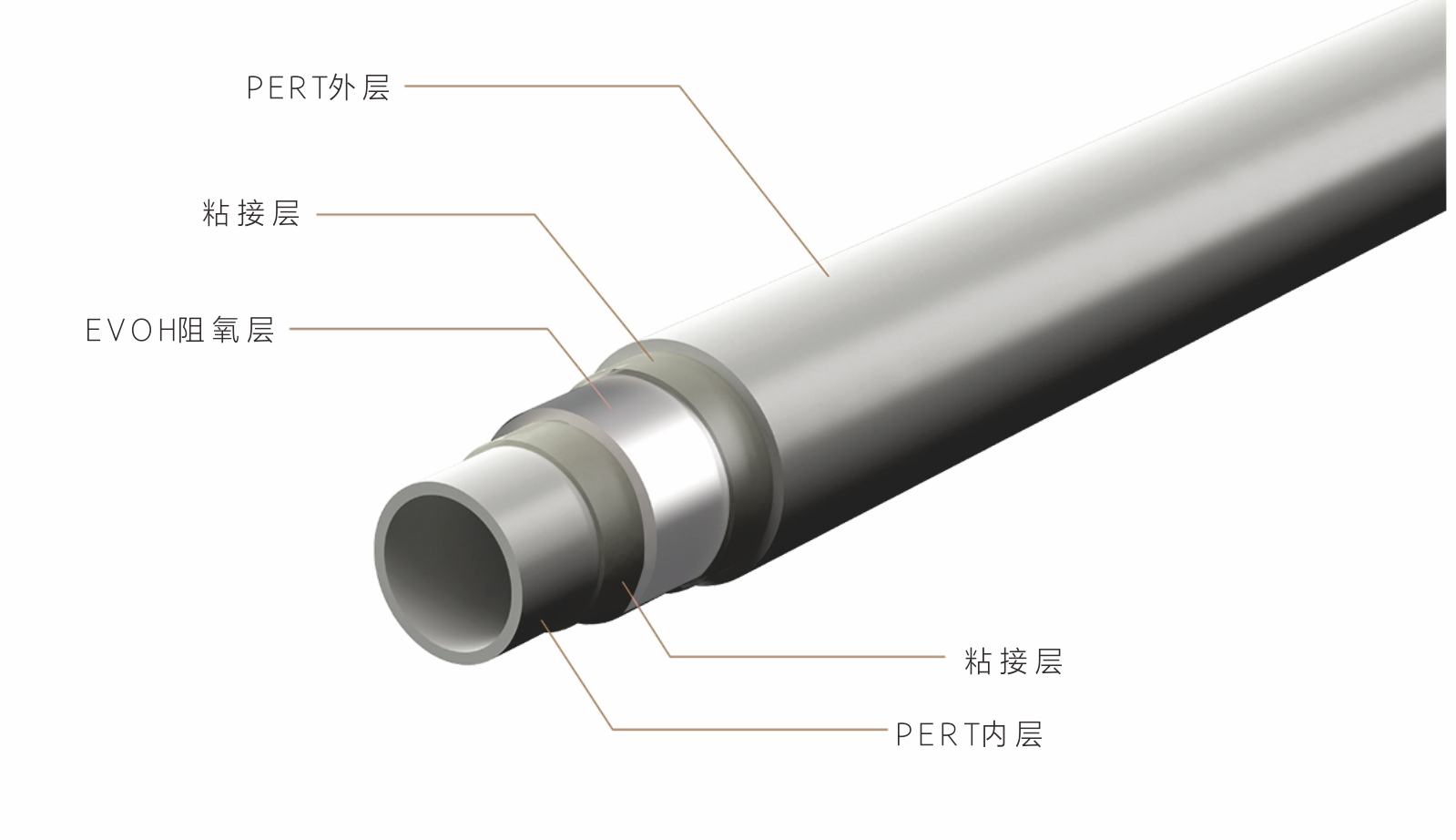

创新的5层塑料管制造工艺,应用独特的挤压工艺,可以一步完成5层结构的复合,将阻氧层(EVOH)永久可靠地黏合在PE-X内层和PE外层之间。


因为独特的制造工艺使得五层结构具有更好的耐变形和抗外部应力的能力。
特别的抗老化剂和稳定剂可以保持管道的永久柔韧性并确保较高的热稳定性。
由于管材的外层保护特性,使得安装更具灵活性和安友好,水暖工人的安装更加快速和方便。








 five-layer oxygen blocking tube has better heat resistance, humidity resistance and wear resistance because of the structure of the intermediate oxygen blocking layer, providing better reliability and durability assurance, suitable for low-temperature radiation ground heating system and radiator connection system, Perfect for construction sites with harsh construction conditions.

The innovative five-layer plastic pipe manufacturing process and the unique extrusion process can complete the five-layer structure compounding in one step. The oxygen barrier layer (EVOH) can be permanently and reliably bonded between the PE-X inner layer and the PE outer layer.

Because of the unique manufacturing process, the five-storey structure has better deformation resistance and external stress resistance.

Special anti-aging agents and stabilizers can maintain the permanent flexibility of pipelines and ensure high thermal stability.

Because of the outer protection characteristics of pipes, the installation is more flexible and safe, and the installation of plumbing workers is faster and more convenient.











引用标准 REFERENCE STANDARD


Wibosn耐高温聚乙烯管目前执行的标准是DIN 4726
WibosnPE-RT管路系统在适用范围内的温度和工作压力情况下可用50年。


The standard of high temperature polyethylene pipe is CJ-T175-2002.The standard of high temperature polyethylene pipe isDIN 4726 .
The PE-RT piping system can be used for 50 years within the applicable range of temperature and working pressure.





技术参数 TECHNICAL PARAMETER


适用范围:地板采暖
颜色:灰色
最高工作温度:90℃
软化温度:123℃
密度:0.933g/cm
拉伸度:170kg/cm²
横向膨胀系数:1.9*10-4k-1
管材导热系数:0.4W/km

Scope of application: floor heating
Color: Red
Maximum working temperature: 90 ℃
Softening temperature: 123 ℃
Density: 0.933g/cm
Tensile degree: 170kg/cm
Lateral expansion coefficient: 1.9*10-4k-1
Thermal conductivity of pipe material: 0.4W/km
